    Tighten Bolts Square Drive Hydraulic Torque Wrench / Hydraulic Torque Tools

    Ask Lasest Price
    Brand Name : PENAD
    Model Number : PDTA
    Certification : ISO, CE/TUV
    Supply Ability : 3000/SET/YEAR
    Delivery Time : 3-4 Working days
    • Product Details
    • Company Profile

    Tighten Bolts Square Drive Hydraulic Torque Wrench / Hydraulic Torque Tools

    2 1/2" Square Drive High Torque Hydraulic Wrench Tool Used To Tighten Bolts


    Product Features:


    1. High strength alumium titanium alloy material body, light weight, large torque-to-weight ratio.

    2. Rough tooth structure, sturdy and durable.

    3. Output accuracy ±3%.

    4. Compact corner radius, more suitable for the confined areas.

    5. Special surface anti-corrosion treatment, suitable for use in harsh environments.


    Field Application

    1. Bolt disassembly of valve maintenance.
    2. Bolt tightening of pressure vessel in paper mill

    Technical Data:


    SELECTION CHART OF PDTA SERIES HYDRAULIC TORQUE WRENCH
    MODEL07PDTA1PDTA3PDTA5PDTA8PDTA10PDTA15PDTA20PDTA25PDTA35PDTA50PDTA
    TORQUE(N.m)112-1120183-1837451-4512752-75281078-107801551-155162062-206272666-266643572-347254866-486667200-72000
    BOLT SIZE(M)14-3016-3622-4827-5630-6436-7239-8042-9048-10064-12072-125
    WEIGH(KGS)1.82479.113.11825314587
    L1(mm)110.8130166198213231270295314355400
    L2(mm)139.3182241281308336400443464489516
    H1(mm)4250688090100110120137153160
    H2(mm)65.87295123130141179182200217223
    H3(mm)76.299130155171187201228255290291
    H4(mm)108.1144176198216230244268295330341
    R1(mm)20.526343947515559677981
    R2(mm)68.399134152171174195250251271259
    SQUARE DRIVE3/4"3/4″1″1-1/2″1-1/2″1-1/2″2-1/2"2-1/2″2-1/2″2-1/2″2-1/2″

    Working site:



    Characters:


    1. The hydraulic torque wrench main body, made of high-tech aerospace materials and ultra-high strength aluminum-titanium alloy steel to integrally form the fuselage, thus comprehensively strengthening the strength and toughness of the fuselage; 2. The wrench coupling which can rotate 360°×360°, is convenient to operate without using space restrictions; 3. The trigger lock catch can be easily pressed, and the 360° fine-tuning reaction arm can be set on a solid fulcrum at will. 4. Large teeth ratchet wheel is adopted, and the accuracy is up to ±3%

    PDTA hydraulic torque wrench products imported from china

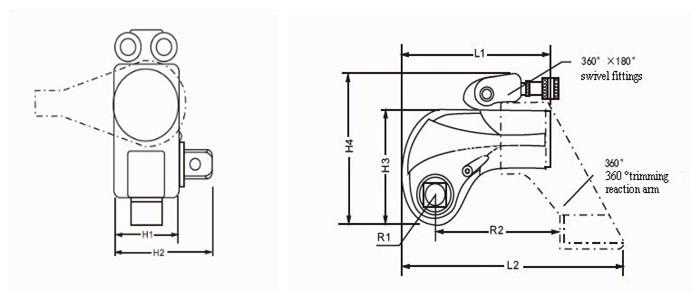

    Products Drawings:


    PDTA hydraulic torque wrench products imported from china
